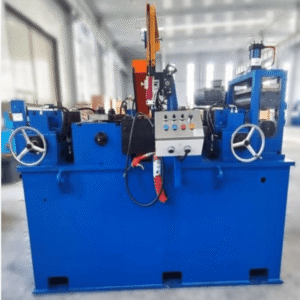

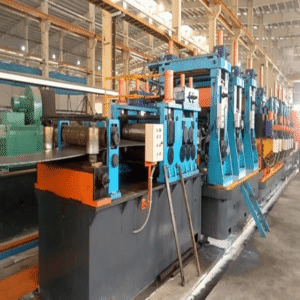

Cost-effective Steel Strip End Welder for ERW Tube Mill Line,Carbon Strip Shear Butt Welder Unit OCTG

Equipment Composition

Mechanic: Bed frame, shearing device, welding unit (include: welding power source, welding wire feeding mechanism, weld compression platen)

Hydraulic: Shared among the hydraulic system of entry section

Electric: Shared among the electrical control system of entry section

Product Introduction

Overview

Our Steel Strip End Welder is an essential auxiliary welding unit for ERW tube mill lines. It is engineered to continuously splice the tail end of the running steel coil to the head end of the next incoming coil during pipe production. This equipment maintains non-stop operation of the ERW pipe mill, greatly cutting downtime, improving production efficiency and lowering scrap rates for carbon steel, galvanized steel and alloy steel pipe fabrication.
Featuring an integrated shearing and welding design, our strip end welder automatically trims irregular steel strip ends, precisely aligns strip edges and completes butt welding within one working cycle. Equipped with a dependable resistance welding system, it generates flat, robust and crack-free weld seams. The spliced steel strip can pass smoothly through the forming stands, sizing stands and high-frequency welding unit of the ERW tube production line without strip breakage during continuous pipe forming.
Custom configurations are available to suit a wide range of strip widths and thicknesses for ERW steel pipe mills, supporting both round tube and square tube manufacturing. Key highlights include hydraulic clamping, fast strip end shearing, automatic edge alignment, intuitive operation and low maintenance requirements. Its heavy-duty rigid frame promises a long service life under sustained high-load operating conditions.
As the core equipment for seamless coil connection in electric resistance welding tube mills, this strip end welder is ideal for steel pipe manufacturers producing ERW tubes, hollow sections, scaffolding tubes and structural pipes. It enables continuous strip feeding, removes frequent mill shutdowns caused by coil change and maximizes throughput of your ERW tube making machine.

Our Advantages

  • Spiral weld seams are formed via angular shearing, delivering superior structural strength while effectively protecting the tube mill.
  • Consistent welding speed ensures full wire penetration and excellent weld quality. The equipment also features simple operation and low maintenance requirements.
  • Integrated automatic shearing, seam alignment and welding functions greatly boost overall production efficiency.
  • An optional dual welding gun configuration is available for automatic CO₂ gas-shielded welding. It enables faster welding with higher current density, creating robust and reliable weld seams.

About GH-Petro

GH-Petro supplies customized ERW & OCTG pipe mill solutions.We combine domestic craftsmanship and international leading technologies to deliver high-quality equipment and reliable services.

Request a Quote

Order Process

1️⃣ Send Your Inquiry
Tell us your product needs and order details.

2️⃣ Confirm the Solution
We recommend the right product and confirm the price.

3️⃣ Production & Quality Check
We arrange production and check the quality before delivery.

4️⃣ Shipping & Support
We ship the goods and provide after-sales support.

Simple. Fast. Reliable.

Frequently Asked Questions

We are a professional manufacturer and we could supply customized mill for ERW pipes and full-range OCTG pipes to meet your request,which include Entry Section,Forming&Sizing,Solid State HF Welder,Straightening Machine,Cold Flying Saw,End Facing Machine,Hydro-tester,UT Flaw Detection Machine,Threading Machine,Bucking Machine and Pipes Packing Machine.
MOQ is flexible for us and one set is feasible.Of course our team also could supply you a complete solution according to your request.
All kinds of our equipment are designed for producing pipes meeting API 5CT, API 5L, ASTM, EN, ISO and GB standards, suitable for oil & gas, pipeline, structural and industrial pipe applications.
Yes. We offer full turn key solutions including process design, equipment manufacturing, installation guidance, commissioning, operator training and after sales service.
Absolutely. Our heat treatment and forming systems are specially engineered for high strength steel grades required for deep well oil and gas OCTG pipes.
T/T, L/C at sight are available. Flexible payment terms can be discussed for large scale turn key projects.
We provide 12 month warranty for core components from the date of shipment, with lifelong technical consultation and spare part supply service.
