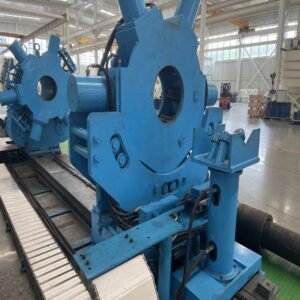

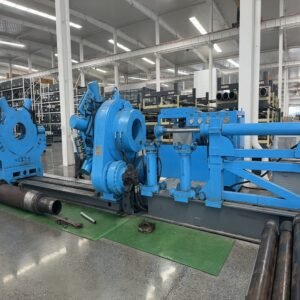

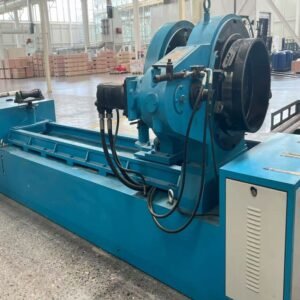

Automatic Hydraulic Bucking Unit for OCTG Production Line,Tubing Thread Processing Torque Machine

Equipment Composition

Main Mechanical Structure

Heavy-duty base frame (stationary floor-mounted / split portable type)
Rotary spindle and main drive head
Optional clamping assemblies: wedge roller clamping, full rotary hydraulic clamping, planetary jaw clamping
Moving carriage and longitudinal sliding feeding mechanism
Inlet & outlet pipe support roller brackets
Safety protective cover

Hydraulic System

Central hydraulic power unit
Clamping, feeding and pushing hydraulic cylinders
Closed-loop proportional control valves for torque regulation
Oil tank, heat exchanger, oil filters and connecting piping

Torque & Detection System

High-precision torque transducer
Rotation turn & angle encoder
Pressure and displacement monitoring sensors

Drive & Transmission Assembly

Hydraulic motor + reduction gear set
Torque feedback transmission structure
Positioning brake device

Electrical Control System

PLC controller cabinet
HMI touch screen operation panel
Built-in data logging module for production traceability
Limit switches, emergency stop buttons and safety interlock devices

Auxiliary Parts

Centralized automatic lubrication system
Cable trunking and protective wiring housings

Product Introduction

Overview

This Hydraulic Bucking Unit for OCTG is specially engineered for high-precision makeup and breakout operations of casings, tubings, drill pipes and premium threaded OCTG couplings. Widely deployed in pipe manufacturing plants, OCTG finishing workshops and downhole tool maintenance yards, it fully complies with the torque requirements stipulated in API 5CT and API 7K industry standards.

Two installation forms are available for selection: fixed floor-mounted type and split portable type, covering an extensive diameter spectrum ranging from small-bore tubing to large-diameter heavy-wall casing. Three core clamping mechanisms are offered as optional configurations: wedge roller clamping, full rotary hydraulic clamping and planetary jaw clamping. They are perfectly compatible with standard round threads as well as premium airtight premium connections such as VAM, Hydril and other proprietary special threads.

Powered by a closed-loop hydraulic system and equipped with PLC+HMI intelligent control system, the machine realizes real-time automatic monitoring of torque, turn counts and rotational angle during the entire threading makeup/breakout process. All testing data can be automatically recorded and stored in the onboard database, enabling complete production traceability and permanent quality file archiving.

Three operating modes are supported: manual, semi-automatic and fully automatic, which can flexibly adapt to occasional sporadic maintenance tasks as well as high-yield continuous mass production lines.

Our Advantages

Precise torque & angle closed-loop control, ensures API standard qualified threaded connection for OCTG casing and tubing
Large clamping range, compatible with various OCTG pipe sizes, grades and thread types
Stable hydraulic driving system, effectively avoids thread galling, deformation and damage during make-up
Automatic pipe centering device, solves pipe bending deviation, guarantees coaxiality of threaded joints
Human-machine touch screen operation, stores multiple make-up parameters for quick model switching
Heavy-duty rigid frame structure, long service life, low failure rate and easy daily maintenance
Real-time data recording and printing function, traceable bucking records for quality inspection
High bucking efficiency, perfectly matched with OCTG heat treatment & threading production line
